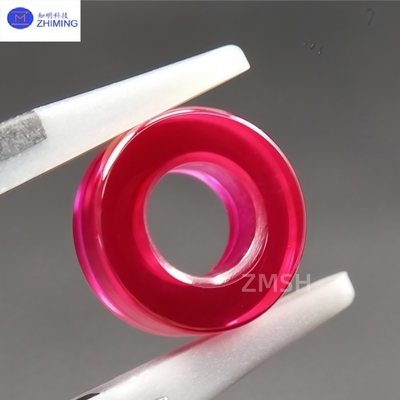

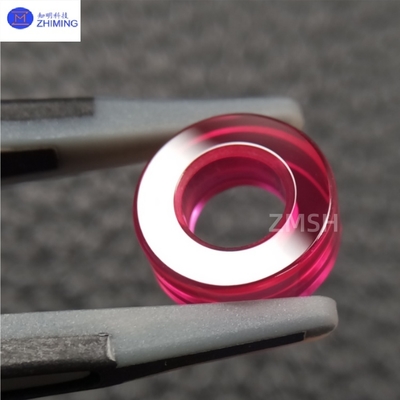

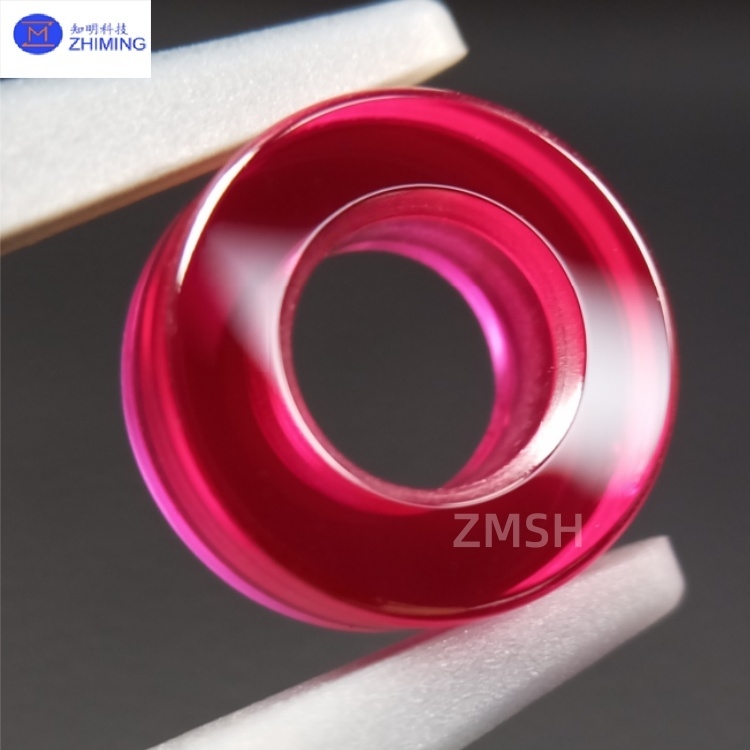

Ruby Bearings Al₂O₃ Single Crystal for Precision Instruments and Meters
Ruby bearings are a classic application of ancient precision engineering materials in modern industry. The core material is synthetic aluminum oxide (Al₂O₃) single crystal, produced using the Verneuil (flame-fusion) method to grow high-quality crystal ingots. These are then subjected to a series of ultra-precision processes including directional cutting, fine grinding, and polishing.
- Material Essence: The material is extremely high-purity α-Al₂O₃ single crystal, which exhibits exceptional hardness (Mohs hardness 9, second only to diamond), an extremely low coefficient of friction, excellent wear resistance, and outstanding chemical stability.
- Design Forms: Ruby bearings are typically not designed as standard rolling-element bearings (such as ball bearings). Instead, they commonly take forms such as through-hole jewel bearings, cup jewel bearings, and V-notch jewel bearings. They are often precisely embedded in metal (e.g., brass, aluminum, or steel) mounts or plates to form a complete support system.
- History and Development: Initially widely used in key components of mechanical watches and pocket watches—such as balance wheel pivots and pallet fork jewels—they were essential to long-term accurate operation. With industrial advancement, their applications have expanded to various micro-precision instruments requiring extremely high accuracy, low friction, and long service life.
Ruby Bearings Main Parameters
| Parameter Name |
Description |
Typical Range / Value |
Importance |
| Bore Diameter (ID) |
The inner diameter of the bearing, the most critical dimension for shaft fit. |
0.05 mm – 3 mm (common in sub-mm range) |
Core parameter directly affecting fit with the shaft, influencing wobble and friction.
|
| Bore Tolerance |
Allowable deviation range of the bore diameter. |
±0.001 mm (micrometer level) |
Extremely high precision is key to ensuring perfect fit and smooth operation.
|
| Outer Diameter (OD) |
The diameter of the bearing’s outer cylinder, used for mounting into housings. |
< 1 mm – > 10 mm |
Determines mounting size and fit with the housing (e.g., press-fit).
|
| Thickness / Height |
Axial dimension of the bearing. |
Varies by design and application |
Affects overall structural strength and axial positioning within the assembly.
|
| Roundness |
Deviation of the inner hole from a perfect circular profile. |
Sub-micrometer level (high-grade parts) |
Affects rotational smoothness; poor roundness causes vibration, wobble, and excess wear.
|
| Surface Roughness (Ra) |
Arithmetic mean deviation of microscopic surface irregularities in the bore. |
≤ 0.01 μm (mirror-like finish) |
Key parameter determining friction coefficient and wear rate; lower values mean less friction and wear.
|
| Concentricity |
Deviation between the center of the inner hole and outer cylinder. |
Controlled per accuracy grade |
Ensures stable rotation axis and prevents runout; critical for high-precision rotating systems.
|
| Material Grade |
Quality classification based on inclusions, bubbles, cracks, etc. |
VVS (Flawless), Commercial, etc. |
Affects mechanical strength, reliability, and service life; highest grades used in aerospace/defense.
|
Ruby Bearings Main Characteristics
The properties of ruby bearings stem directly from the physical and chemical characteristics of synthetic sapphire material:
- Extreme Hardness & Wear Resistance: Ruby bearings with a Mohs hardness of 9, they are highly resistant to scratching and wear. Even after prolonged friction against steel shafts, their wear is minimal, allowing long-term retention of geometric accuracy and extremely long service life.
- Very Low Coefficient of Friction: The combination of an ultra-smooth surface and high hardness results in very low static and dynamic friction against metal shafts (e.g., steel). This enables low starting torque, highly responsive transmission, and minimal energy loss—critical for precision instruments.
- Excellent Compressive Strength: Ruby bearings are capable of withstanding high pressure without deformation or fracture, making them suitable for supporting high-speed rotating or load-bearing pivots.
- Outstanding Chemical Inertness: Ruby bearings are insoluble in water, resistant to strong acids and alkalis (except hydrofluoric acid and hot phosphoric acid), and tolerant of various organic solvents. This allows stable performance in harsh chemical environments without rusting.
- Good Thermal Stability: Ruby bearings melting point as high as 2050°C, with a low coefficient of thermal expansion. Maintains dimensional stability at elevated temperatures, with no significant change in performance.
- High Rigidity: High elastic modulus ensures minimal deformation under load, providing stable and reliable support for repeatable accuracy in instruments.
- Electrical Insulation: An excellent electrical insulator, which is advantageous in certain electronic or electrical measurement devices.
Ruby Bearings Main Application Fields
Ruby bearings are used in nearly every industry where "precision excellence" is required:
1. Precision Instruments & Meters: A classic field. Ruby bearings are widely used in electricity meters, water meters, gas meters, flow meters, pressure gauges, optical comparators, and micrometers. Their low friction ensures instrument starting sensitivity and measurement accuracy, while long life ensures lasting stability and reliability.
2. Horology (Watchmaking): The origin and highest craft representation. High-end mechanical watches and marine chronometers extensively use ruby bearings (commonly called "jewels") in balance wheels and escapements (pallet forks, impulse pins). The term "jewel count" in watches refers to these. They are a core embodiment of mechanical watch accuracy and value.
3. Aerospace & Defense: Ruby bearings are used in gyroscopes, inertial navigation systems, optical aiming devices, UAV gimbals, and other equipment demanding extreme stability, reliability, and resistance to harsh environments.
4. Medical Devices: Ruby bearings are applied in dental handpieces, precision surgical instruments, infusion pumps, blood analyzers, and artificial heart pumps. Leverages their chemical inertness (sterilizability), low friction, and long life.
5. Electronics & Semiconductor Manufacturing: In chip manufacturing equipment, ruby bearings are used in wafer handling robots, lithography machine positioning stages, and other ultra-precision motion components, providing dust-free, non-magnetic, and highly stable support.
6. High-End Industrial Equipment: Ruby bearings are used in coordinate measuring machine (CMM) probes, precision encoders, fiber optic connectors, and laser equipment optical adjustment mounts.
Related product recommendations
1. High-Precision Customized Sapphire Bearings Low Friction Industrial Applications
2. Sapphire Bearing Parts High Precision Wear Hardness 9.0 For High-end Precision Instruments
1. Q: What are ruby bearings made of?
A: Despite the name, ruby bearings are made from synthetic sapphire (monocrystalline aluminum oxide, Al₂O₃), which is artificially grown to achieve extreme hardness and a perfectly smooth surface.
2. Q: Why are jewels used in watches?
A: Jewels (ruby bearings) are used in watches to drastically reduce friction at pivotal movement points, which minimizes wear, improves accuracy, and extends the lifespan of the timepiece.
3. Q: What are the advantages of ruby bearings over metal?
A: Ruby bearings offer superior advantages over metal, including exceptional wear resistance, an extremely low coefficient of friction, and excellent corrosion resistance, leading to longer service life and higher reliability in precision instruments.
