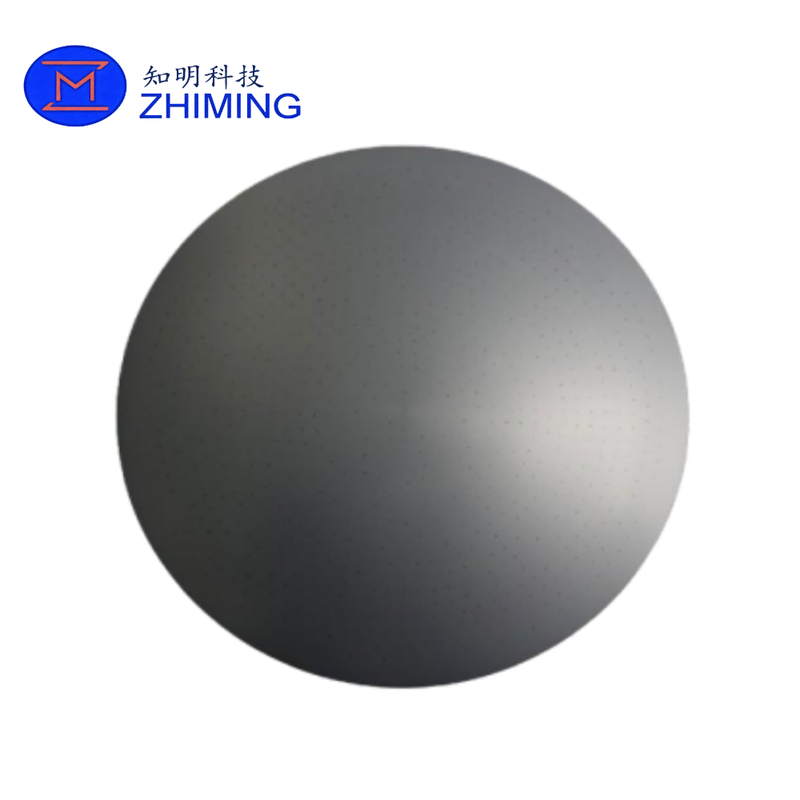

The CVD Silicon Carbide (SiC) Electrode is a high-performance semiconductor chamber component engineered for plasma etching, PECVD, ICP, and advanced wafer processing systems. Manufactured from high-purity Chemical Vapor Deposition (CVD) Silicon Carbide, the electrode delivers exceptional plasma erosion resistance, thermal stability, and long-term electrical consistency in aggressive semiconductor environments.

Compared with conventional silicon electrodes, CVD SiC electrodes provide significantly improved operational lifetime, lower particle generation, and superior resistance to fluorine- and chlorine-based plasma chemistries. These advantages make them an ideal solution for advanced semiconductor fabs requiring stable, contamination-controlled, and high-throughput processing.

Designed for harsh plasma applications, SiC electrodes maintain stable electrical and thermal characteristics during prolonged processing cycles, helping improve process repeatability, chamber uptime, and wafer yield.

Why CVD SiC Electrodes Are Used in Semiconductor Plasma Systems

In semiconductor plasma chambers, electrodes are essential for:

• Plasma generation and stabilization
• RF energy transmission
• Electric field control
• Gas distribution uniformity
• Process repeatability

Under high-energy plasma exposure, conventional silicon electrodes gradually suffer from:

• Plasma erosion
• Surface degradation
• Particle shedding
• Thermal deformation
• Electrical drift

CVD SiC electrodes overcome these limitations through their dense crystal structure, high purity, and outstanding corrosion resistance.

Key Advantages of CVD Silicon Carbide Electrodes

Exceptional Plasma Resistance

CVD SiC demonstrates excellent resistance to fluorine-based and chlorine-based plasma chemistries including:

• CF₄
• SF₆
• NF₃
• Cl₂

This significantly reduces electrode erosion and extends operational lifetime under continuous plasma exposure.

Ultra-Long Service Life

Compared with traditional silicon electrodes, SiC electrodes can typically achieve:

• 3–10× longer service life
• Reduced maintenance intervals
• Lower chamber downtime
• Improved equipment utilization

Low Particle Generation

The dense CVD SiC structure minimizes micro-flaking and surface degradation, reducing contamination risk and helping improve semiconductor yield performance.

High Thermal Conductivity

Excellent heat dissipation capability helps:

• Stabilize chamber temperature
• Reduce thermal stress
• Improve plasma uniformity
• Maintain process consistency

Stable Electrical Performance

SiC electrodes maintain stable resistivity and RF characteristics over long production cycles, helping ensure consistent plasma behavior and repeatable wafer processing.

Precision Semiconductor-Grade Machining

Electrodes are manufactured with high dimensional accuracy and customizable gas distribution patterns to support advanced semiconductor integration requirements.

Technical Specifications

Semiconductor Applications

Plasma Etching Systems

Widely used in ICP and RIE plasma etching chambers requiring high plasma resistance and stable RF performance.

CVD & PECVD Equipment

Suitable for deposition systems operating under high-temperature and corrosive gas conditions.

High-Power Plasma Chambers

Excellent durability for long-cycle plasma processing applications.

Wafer Surface Treatment

Used in surface activation, cleaning, modification, and advanced semiconductor processing steps.

Advanced Semiconductor Manufacturing

Compatible with high-throughput semiconductor production lines and advanced process nodes.

Advantages Compared with Silicon Electrodes

Customization Options

Custom semiconductor-grade SiC electrodes are available with:

• Customized dimensions
• RF resistivity control
• Gas distribution hole patterns
• Surface finishing
• Mounting structures
• Cooling channel design
• Edge profile optimization

OEM and drawing-based manufacturing are supported.

Product Benefits for Semiconductor Fabs

✔ Extended chamber component lifetime
✔ Reduced consumable replacement frequency
✔ Lower particle contamination risk
✔ Improved wafer yield stability
✔ Reduced maintenance downtime
✔ Better plasma process consistency
✔ Suitable for aggressive fluorine plasma environments

FAQ

Q1: Is the SiC electrode considered a consumable part?

Yes. SiC electrodes are semiconductor consumable components, but their lifetime is significantly longer than conventional silicon electrodes.

Q2: Why is CVD SiC preferred for plasma chambers?

CVD SiC provides superior plasma erosion resistance, excellent chemical stability, and low particle generation under aggressive semiconductor processing conditions.

Q3: Can the electrode design be customized?

Yes. Diameter, thickness, resistivity, gas hole layout, mounting structure, and surface finish can all be customized according to chamber requirements.

Q4: What plasma processes are suitable for SiC electrodes?

They are widely used in:

• ICP etching
• RIE systems
• PECVD
• Plasma cleaning
• Surface treatment
• Advanced wafer fabrication processes
